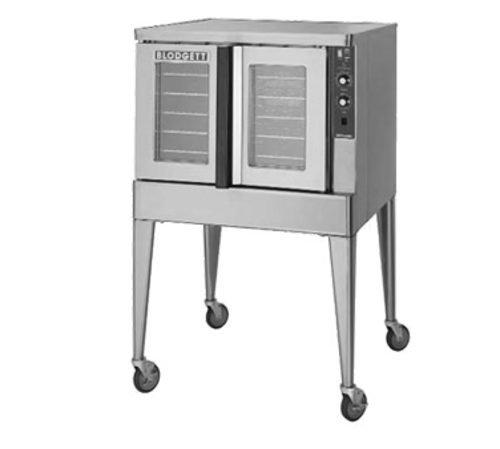

Blodgett ZEPH-100-E SGL Zephaire Single Full Size Electric Convection Oven

Blodgett ZEPH-100-E SGL Zephaire Single Full Size Electric Convection Oven

Call For Best Pricing

(908) 687-2112

Regular price $14,955.00
Regular price Sale price $14,955.00
Sale Sold out

As many as five 18-inch by 26-inch baking pans can be loaded onto the Blodgett ZEPH-100-E SGL Zephaire convection oven's five chrome-plated wire racks. These racks can be adjusted in 11 positions, which are spaced 158 inches apart, to achieve various results. Intended for low-volume applications, this oven roasts, bakes, and rethermalizes foods quickly with its convection heating system. Three tubular heaters generate heat between 200 and 500 degrees Fahrenheit, which operators can adjust with the solid-state thermostat. A two-speed fan motor blows air throughout the cabinet, dispersing heat evenly to eliminate cold spots that could impact food quality. To preserve set temperatures, solid mineral fiber insulation is built into the top, back, sides, and bottom.

Two doors encase the Blodgett ZEPH-100-EGL single-deck convection oven's porcelainized cooking compartment, and they open dependently with the powder-coated handle so operators can load and remove pans in a sideways configuration easily. Glass panels provide a clear view of the oven's interior so users can manage the baking process. This structure is mounted on 25-inch stainless steel legs that level on uneven flooring, reducing the risk of rocking as pans are loaded and removed. To withstand high-volume use in commercial environments, this 3814-inch-wide by 3678-inch-deep by 57-inch-high oven is constructed of lasting, durable stainless steel, and its full angle-iron frame adds structural rigidity.

Product Details

  • Single-deck unit with standard depth
  • Stainless steel top, sides, and front and full angle-iron frame
  • Solid mineral fiber insulation built into top, back, sides, and bottom
  • 5 removable, chrome-plated racks with 11 positions
  • Racks spaced 158 in. apart
  • Capacity: (5) 18-in. x 26-in. pans
  • 3 tubular heaters
  • 2 interior oven lamps
  • 2-speed fan motor
  • 12-HP motor with automatic thermal overload protection
  • Solid-state infinite controls with 60-min. manual timer
  • Operating temperature range: 200-500 degrees F
  • Control area cooling fan
  • 2 dependent doors with powder-coated door handle
  • Dual-pane thermal glass windows
  • Triple-mounted, pressure-lock doors with turnbuckle assembly
  • Double-sided porcelain baking compartment liner
  • Aluminized blower wheel
  • 25-in. adjustable stainless steel legs
  • Vent connector included

Dimensions & Utilities

  • Interior: 29 in. W x 2414 in. D x 20 in. H
  • Overall: 3814 in. W x 3678 in. D x 57 in. H
  • 29-31 A, 11 kW, 12 HP
