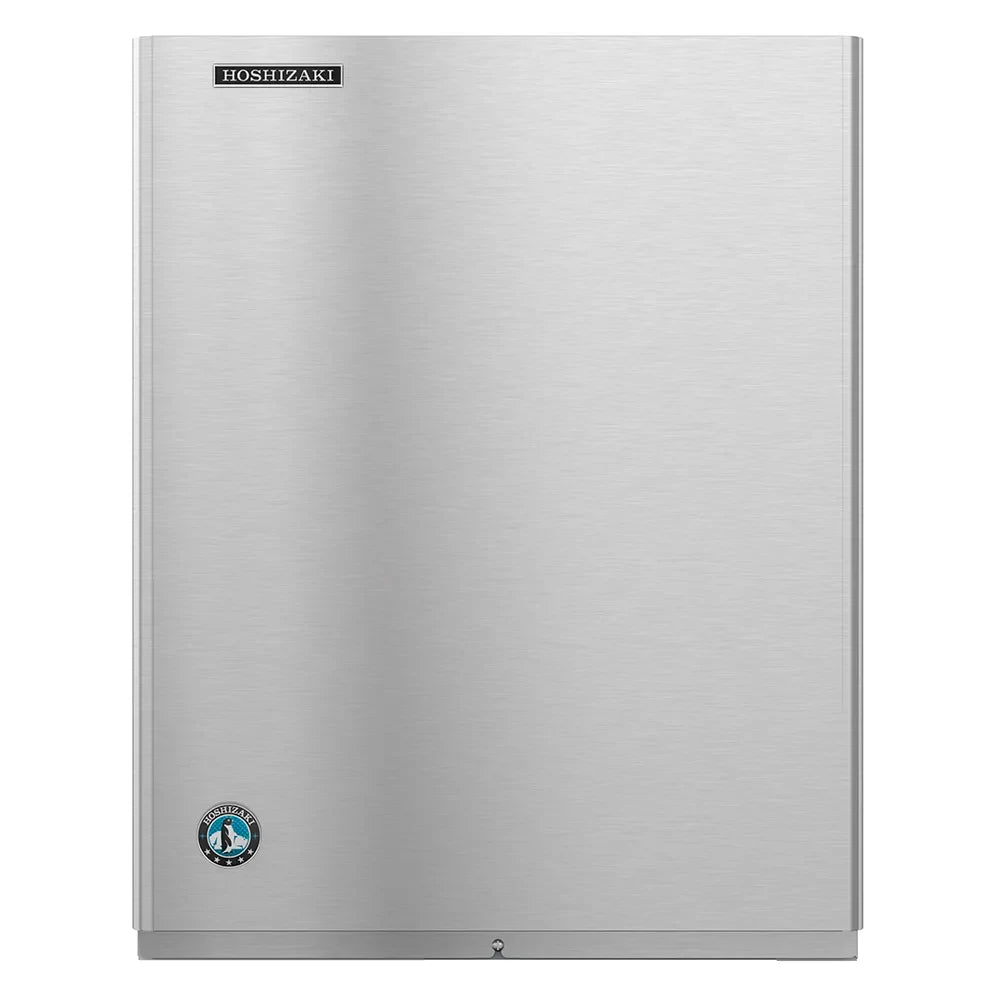

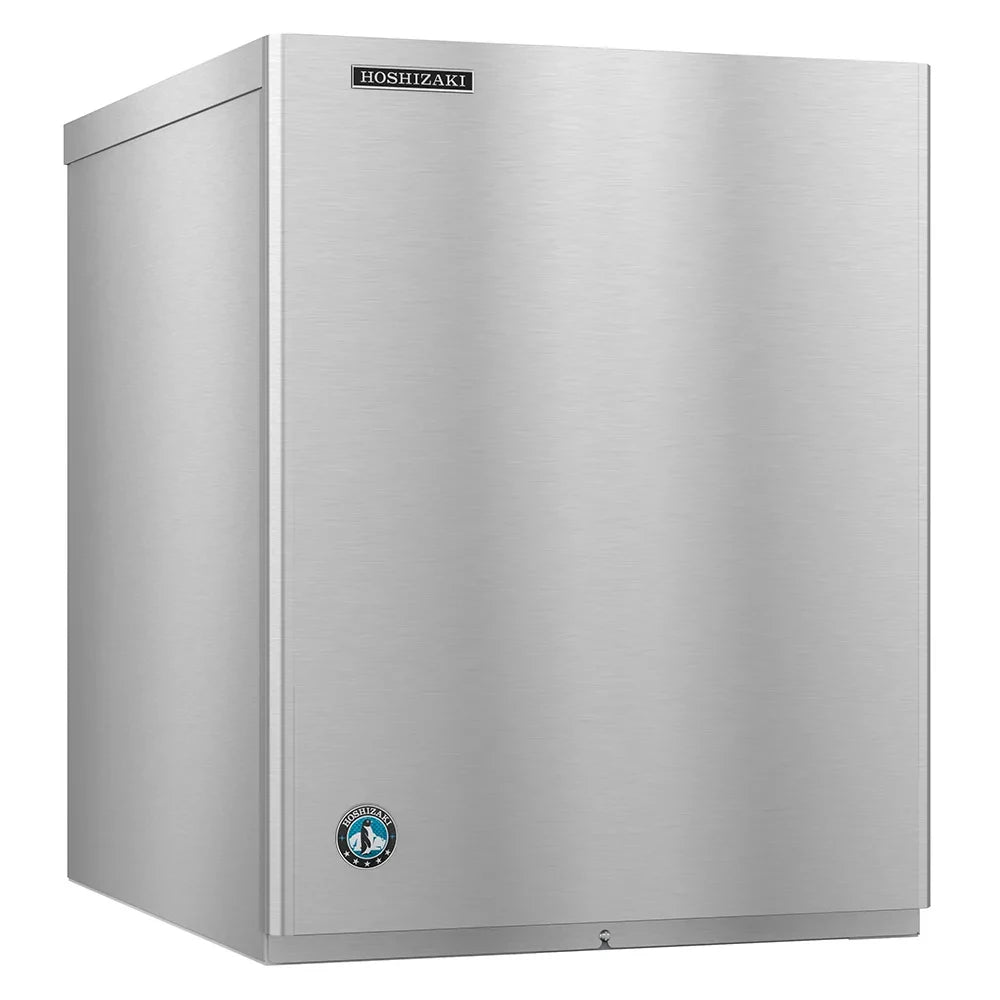

In Ideal conditions, the Hoshizaki KM-520MWJ ice machine head produces 474 pounds of crescent-cube ice per day. It is a water-cooled unit, and its self-contained condenser operates with R404A refrigerant. To reduce the buildup of bacteria in the machine, it's protected by H-Guard Plus antimicrobial, and it self-cleans in just an hour with Clean Assist. Because the components of this unit snap in and out, they can be removed for cleaning.

The Hoshizaki KM-520MWJ crescent-cube ice machine head has self-diagnostics that automatically adjust the unit to a changing environment. If something goes wrong, the EverCheck™ alert system tells users that maintenance is needed. Its evaporator is made of stainless steel to resist corrosion, and the finish is also stainless steel to provide durability.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• 474-lb. maximum daily ice production
• 444-lb. AHRI-certified daily ice production
• Makes crescent-cube ice
• Crescent-cube ice size: 1¹⁄₈ in. L x ¹⁄₂ in. W x 1¹⁄₂ in. H
• Water-cooled, self-contained condenser
• Cooled with R404A refrigerant
• Clean Assist cleans unit in 1 hr.
• H-GUARD Plus antimicrobial reduces bacteria buildup
• EverCheck alert system informs users of issues
• Self-diagnostics adjust settings when conditions change
• Double-sided stainless steel evaporator
• Snap-fit parts are removable for cleaning
• Durable stainless steel finish
• Requires 6-in. clearance at rear, sides, and top
• Ice bin and dispenser sold separately
• Ideal ambient air temperature: 45-100 degrees F
• Ideal incoming water temperature: 45-90 degrees F
• Ideal incoming water pressure: 10-113 PSIG
• 6,300-BTU heat transfer capacity

Dimensions & Utilities

• 22 in. W x 27.38 in. D x 28 in. H
• 8.45 A, 4.65 kW
• 115 V/60 Hz/1 ph
