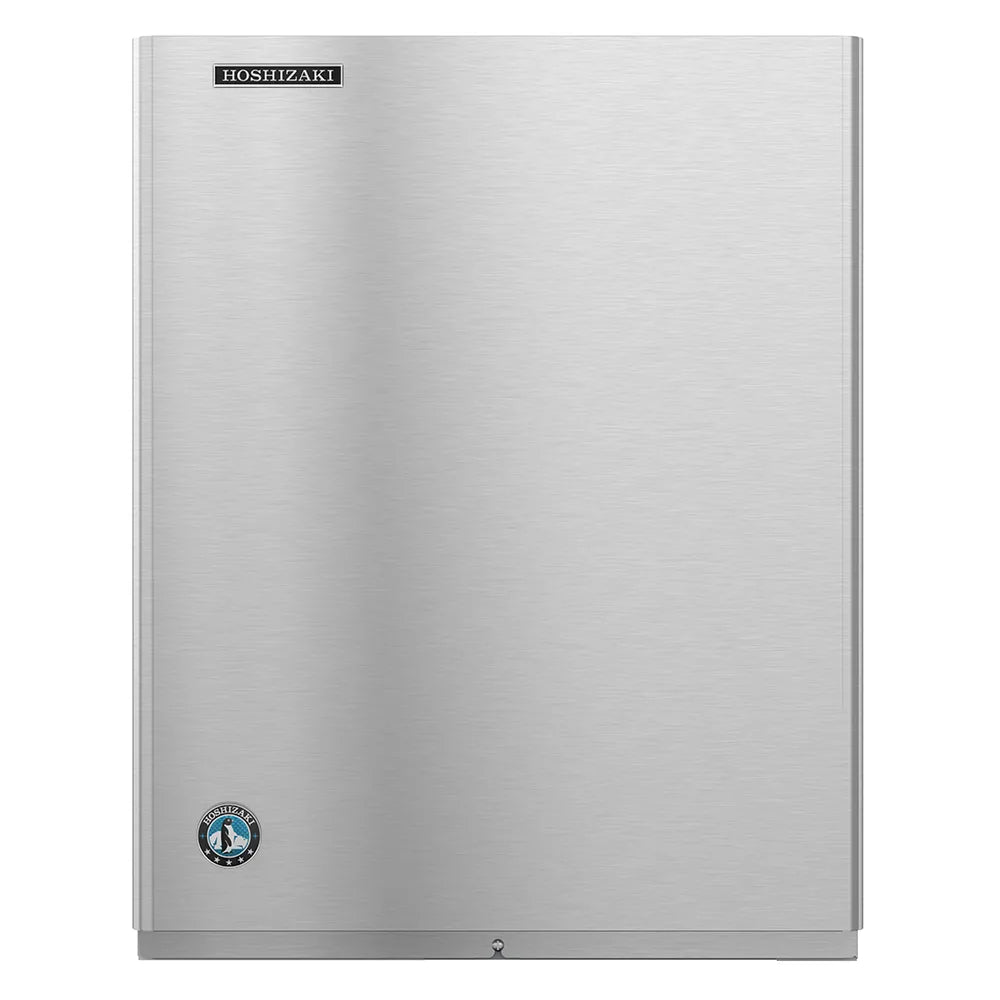

Hoshizaki KM-660MWJ Water Cooled Ice Machine (669 lbs/day)
Hoshizaki KM-660MWJ Water Cooled Ice Machine (669 lbs/day)
HOSHIZAKI
Pickup available at Shop location
Usually ready in 5+ days
The Hoshizaki KM-660MWJ crescent cube ice machine head is water cooled, so it resists hot ambient temperatures more effectively than an air-cooled system. It can produce 669 pounds of crescent ice each day and features a factory-installed ultrasonic bin control that automatically stops the production of ice when the bin is full. Because of its narrow profile, this ice machine head doesn't take up much space; it's a good size for smaller operations, such as corner stores and food courts.
The Hoshizaki KM-660MWJ ice machine head is built to streamline cleaning and maintenance of the machine, reducing operator labor and prolonging the life of the unit. Self-diagnostic features optimize production, while an EverCheck™ system monitors performance and alerts operators if issues arise. The simple design of the machine has less parts than previous models and features a snap-in construction that enables users to clean it in just one hour—encouraging daily cleaning.
Note: This unit must be paired with an ice maker bin or ice dispenser.
Product Details
- 669-lb. maximum daily ice production
- 668-lb. AHRI-certified daily ice production
- Water-cooled system
- Produces crescent cube ice
- CycleSaver™ design
- Self-monitoring EverCheck alert system indicates when service is needed
- Self-diagnostic programming tweaks settings to optimize performance
- H-Guard Plus® antimicrobial agent is applied to components
- Double-sided stainless steel evaporator resists corrosion
- Removable panels provide fast access to internal components
- 1-hr. cleaning process
- Snap-fit parts
- Crescent cube size: 11⁄8 in. W x 1⁄2 in. D x 11⁄2 in. H
- Recommended ambient air temperature: 45-100 degrees F
- Recommended incoming water temperature: 45-90 degrees F
- Recommended incoming water pressure: 10-113 PSI
- R404A refrigerant
- 8,900-BTU heat transfer capacity
- Required clearance: 6 in. at rear, sides, and top
Dimensions & Utilities
- 22 in. W x 273⁄8 in. D x 28 in. H
- Plumbing inlet minimum requirements: 1⁄4-in. nominal ID copper water tubing
- Drain line minimum requirements: 3⁄4-in. nominal ID hard pipe
- 12.35 A, 4.28 kW
- 115 V/60 Hz/1 ph
