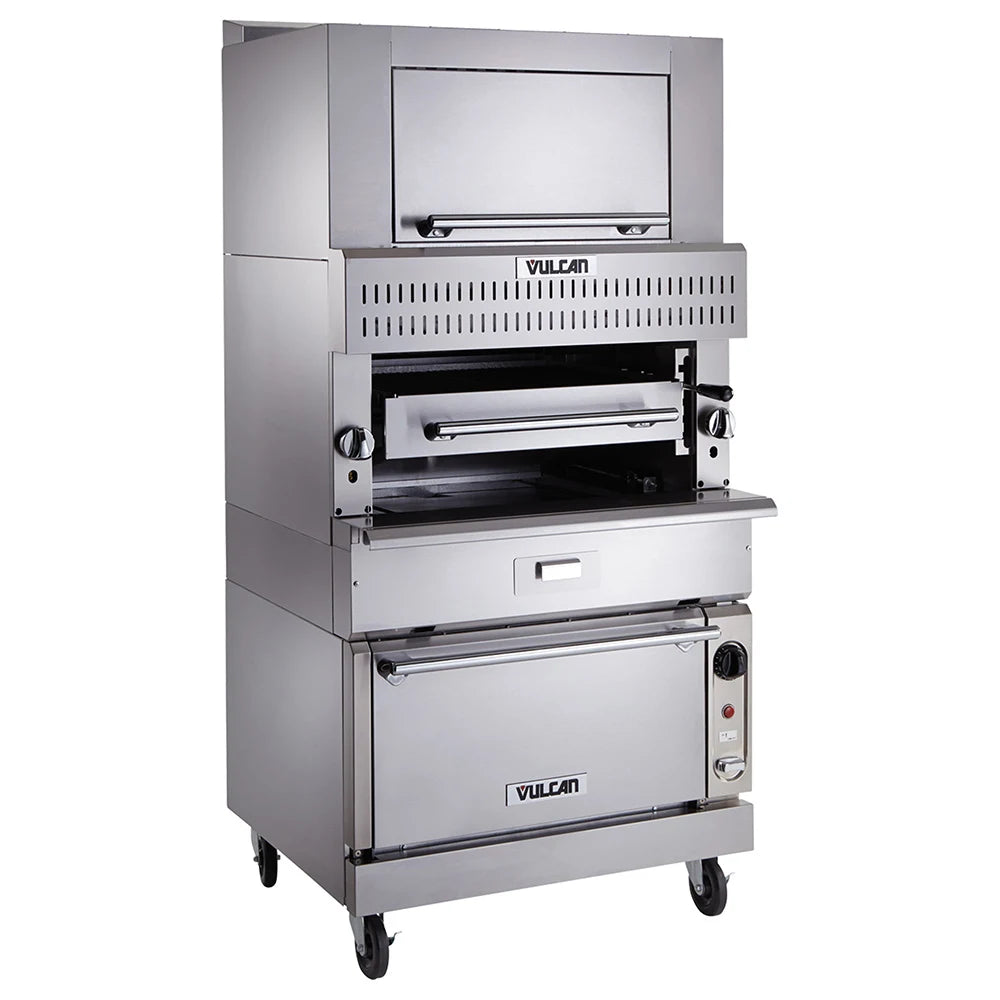

Vulcan VIR1BF Gas Upright Infrared Broiler w/ Cabinet Base & Finishing Oven

Vulcan VIR1BF Gas Upright Infrared Broiler w/ Cabinet Base & Finishing Oven

Call For Best Pricing

(908) 687-2112

Regular price $26,077.00
Regular price Sale price $26,077.00
Sale Sold out
Gas Type

With its single-deck design, the Vulcan VIR1BF upright broiler has a cooking grid with a storage cabinet implemented beneath it. The cooking grid measures 2512 inches wide by 2412 inches deep and is made of cold-rolled steel bars, creating grill marks and improving heat conduction. Its front, top front ledge, and sides are made of stainless steel to withstand high-volume use and daily wear. This 36-inch-wide by 42.63-inch-deep by 77.13-inch-high unit is supported by 6-inch stainless steel legs.

The Vulcan VIR1BF upright broiler is heated by four 25,000-BTU burners and uses natural gas. Its integrated pilot ignition system streamlines activating the unit, and users can control burners with two infinite heat valves. Operators can raise or lower the cooking grid in five different positions to achieve desired results, from browning to holding. Beneath the grid, a full-width, floating stainless steel drip pan collects grease and food particles and can be cleaned out to maintain a sanitary unit. The broiler's base cabinet can store pans, pots, and other cooking utensils for versatility.

Product Details

  • Part of the V Series
  • 1 deck
  • (4) 25,000-BTU infrared burners
  • Pilot ignition system is accessible
  • 2 infinite heat controls
  • Cooking grid is spring balanced and adjusts to 5 positions
  • Cold-rolled steel bars on cooking grid
  • Stainless steel front, top front ledge, and sides
  • 114-in.-diameter front gas manifold
  • Full-width, floating stainless steel drip pan
  • 6-in. adjustable stainless steel legs
  • Rear clearance: 6 in.
  • 100,000 BTU

Dimensions & Utilities

  • Cooking grid: 2512 in. W x 2412 in. D
  • Overall: 36 in. W x 42.63 in. D x 77.13 in. H
